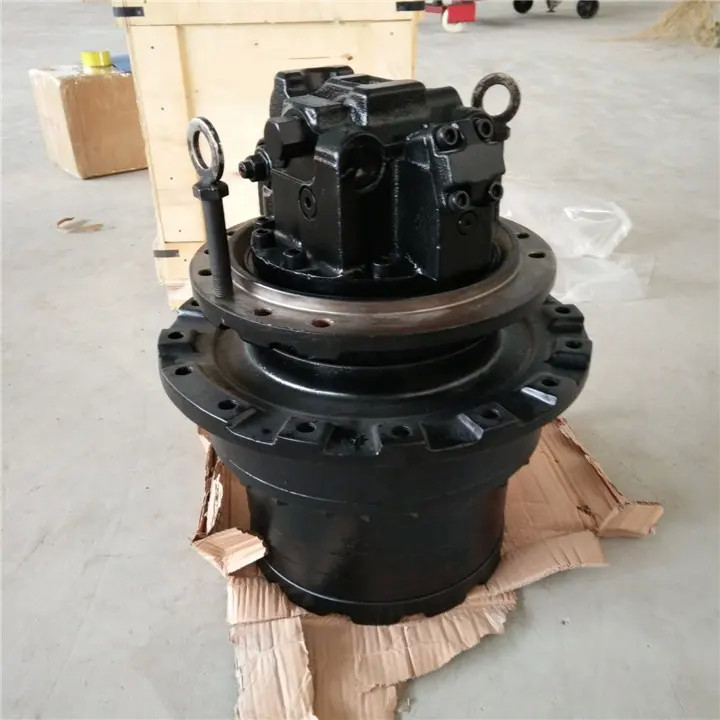

9155253 Excavator Travel Device EX200-5 EX200-5 HMGF38A EX200-1 EX200-2 EX200-3 Travel Motor

Product Categories

BETTER PARTS Machinery Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 9155253 Excavator Travel Device EX2005 EX2005 HMGF38A EX2001 EX2002 EX2003 Travel Motor
Brand: BETTERPARTS
Price: 1 USD

Brand Name : BETTERPARTS

Model Number : EX200-5

Place of Origin : China

MOQ : 1PCS

Price : Negotiated price

Payment Terms : T/T

Supply Ability : 1000/month

Delivery Time : 5 work days

Packaging Details : standard box

Model : EX200-5

Material : Steel

Color : Black

Product description : final drive/travel motor

Appliion : Excavator

Warranty : 6 months

Contact Now

Excavator Travel Device EX200-5 Travel Motor 9155253 EX200-5 HMGF38A EX200-1 EX200-2 EX200-3 EX200-5Final Drive

Hitachi Excavator 4448321 ZX200-6 ZX200-1 ZX210 ZX200 Travel Motor Assy ZX200 Final Drive

Product Parameter
Product name	Excavator travel motor
Model	EX200-5
Quality	100% Professional Test
Condition	new
Packing	Standar packing
Material	Steel
MOQ	1 pcs
Delivery	Within 3days after received payment
Place of Origin	Ghuangzhou,China
Warranty	6 months
Specific Use	Make the excavator have stronger axial force and radial force when working.
Product Description	Provide strong power for the operation of the excavator.
Scope of appliion	Various brands of excavators
After service	Online support

9155253 Excavator Travel Device EX200-5 EX200-5 HMGF38A EX200-1 EX200-2 EX200-3 Travel Motor

Check the piping and flexible hose is correctly installed. Ensure correct direction of rotation of the motor is achieved.
Check for leakage from all motor parts.
Ensure the system is operating within the specified working temperature.
Check the pressure is operating within specified range.

Diagnosis & Maintenance
If motor is running with an unusual sound, unscrew the plug from the case drain and check whether the oil level is present. add
the oil level if required and ensure to bleed the trapped air from the circuit. also check the oil quality, if have impurities,
need replace the oil and keep it clean. to keep the life of the Track Drive Motor.
• If you still experience abnormal operation of the motor, check the pressure throughout the work circuit to assess whether or not
the motor is breakdown.

#	Part No	Part Name	Qty.
	9191194	TRAVEL DEVICE (FOR ASSEMBLY OF MACHINE)	2
	9199841	TRAVEL DEVICE (FOR TRANSPORTATION)	2
00	9190295	MOTOR; OIL (FOR ASSEMBLY OF MACHINE)	1
00	9200288	MOTOR; OIL (FOR TRANSPORTATION)	1
02	4114753	EAL; GROUP	1
03	4246793	*BRG.; ROL.	2
04	1027152	*DRUM	1
05	1010203	*SPROCKET	1
06	J932055	*BOLT	16
07	A590920	*WASHER; SPRING	16
08	3086531	*NUT	1
11	4436242	*PIN; KNOCK	1
12	1026779	*CARRIER	1
13	3085966	*GEAR; PLANETARY	3
14	4445531	*BRG.; NEEDLE	6
15	4284521	*PLATE; THRUST	6
16	4139975	*PIN	3
17	4116309	*PIN; SPRING	3
18	3085927	*GEAR; SUN	1
20	1027158	*GEAR; RING	1
21	J931640	*BOLT	28
23	1027161	*CARRIER	1
24	4401293	*SPACER	2
25	3085985	*GEAR; PLANETARY	3
26	4445529	*BRG.; NEEDLE	3
27	4210851	*PLATE; THRUST	6
28	4309995	*	3
29	4246358	*PIN; SPRING	3
30	3085941	*GEAR; SUN	1
32	1027160	*CARRIER	1
33	3086006	*GEAR; PLANETARY	3
34	4406589	*BRG.; NEEDLE	3
35	4192910	*PLATE; THRUST	6
36	4210853	*PIN	3
37	4173093	*PIN; SPRING	3
38	2043851	*SHAFT; PROP	1
40	2043868	*COVER	1
41	4285323	*PIN; STOPPER	1
42	J011230	*BOLT; SEMS	12
43	4245797	*PLUG	3
46	3053559	*NAME-PLATE	1
47	M492564	*SCREW; DRIVE	2
43	4245797	. PLUG	3
46	3053559	. NAME-PLATE	1
47	M492564	. SCREW; DRIVE	2
