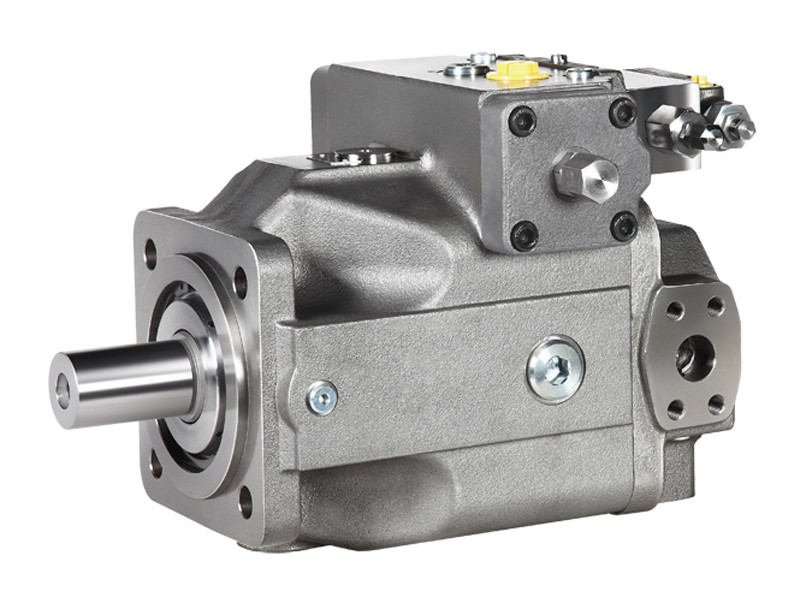

A4VSO125 Rexroth Hydraulic Pump Axial Piston Variable Pump A4vso A4vso125

High Quality Rexroth A4VSO125 Piston Pump Axial Piston Variable Pump A4vso For Rexroth Pump A4vso125 6Month Warranty

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Security Information

• – Pump A4VSO is designed to operate in open circuit.
• – System design, installation and commissioning need to be performed by trained technicians and dealers.
• – All hydraulic ports should only be used to tighten hydraulic service lines.
• – Tightening torque:
• · All tightening torques listed here are maximum values ​​and should not be exceeded (maximum values ​​for female threads in castings). For the maximum permissible tightening torque of the accessories used, please follow the information provided by the manufacturer.
• · For tightening screws according to DIN13, it is recommended in each case to check the permissible tightening torque according to VDI2230 (published in 2003).
• – During or shortly after the pump is running, the housing and especially the coils can be particularly hot. Please take appropriate safety measures (eg wear protective clothing).
• – All data and information provided with the product must be followed.
•

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Installation Precautions

• The installation location is optional. During commissioning, the pump housing must be filled with oil and must be filled during operation.
• To reduce operating noise levels, all connecting lines (suction, pressure and tank drain lines) must be separated from the tank using flexible elements.
• The use of check valves in the case drain line must be avoided.
• The tank drain line must be routed directly back to the tank with no change in line size. There may be abnormal situations, please consult us in time.
• Can be installed vertically or horizontally.

A4VSO125 Rexroth Hydraulic Pump

Axial Piston Variable Pump

Axial Piston Variable Pump A4vso A4vso125

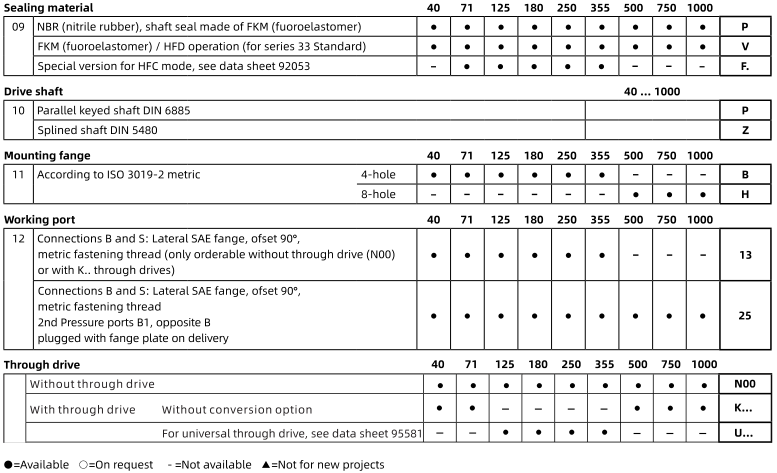

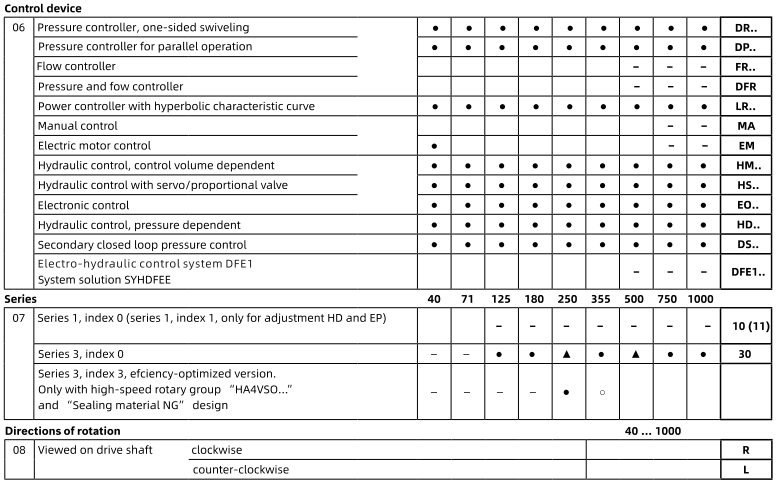

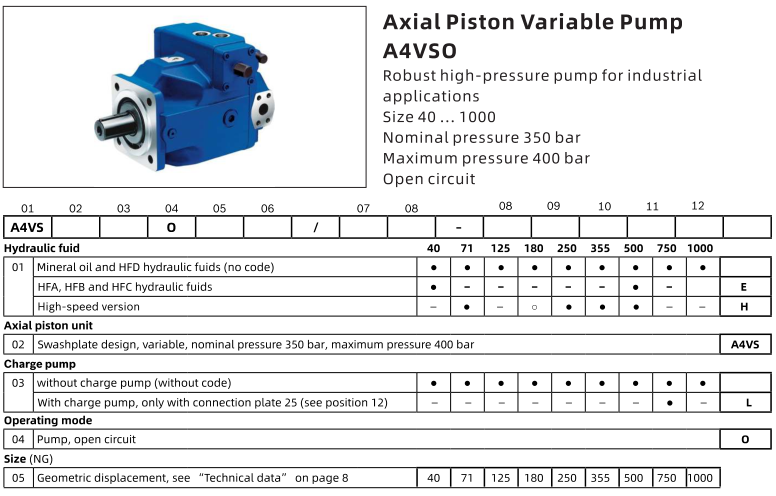

A4VSO125 Rexroth Hydraulic Pump Axial Piston Variable Pump A4vso A4vso125 Images
